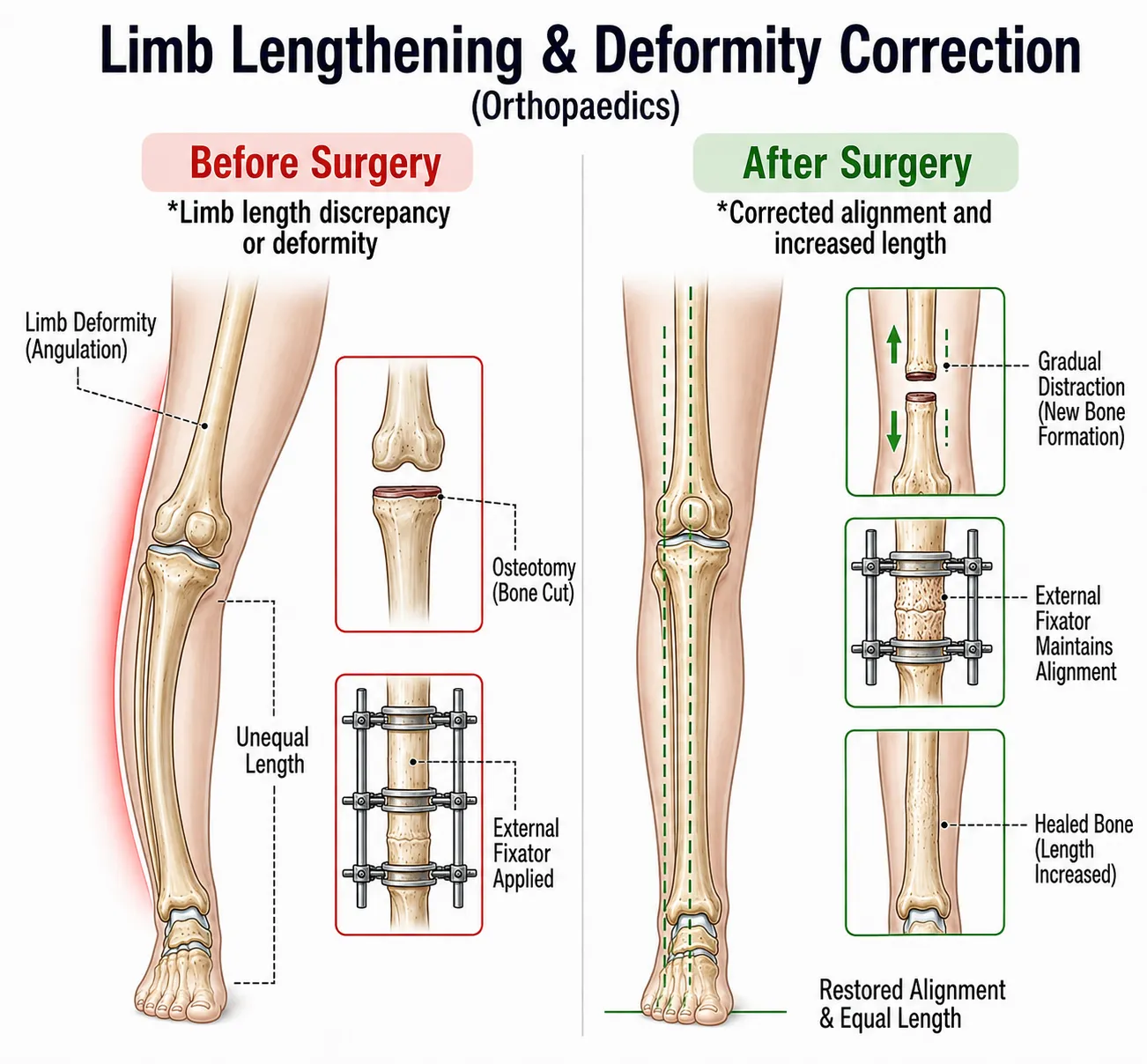

What is Limb Lengthening & Deformity Correction?
Limb lengthening is a surgical reconstruction technique that capitalizes on the body's natural capacity to generate new bone. By performing a precise bone cut (osteotomy) and applying an external fixator or motorized internal lengthening nail, the bone ends are slowly pulled apart at a rate of ~1 mm per day (distraction osteogenesis). New bone, soft tissue, nerves, and blood vessels grow into the gap to lengthen the bone or correct angular deformities.
Who Needs Limb Lengthening & Deformity Correction?
Indicated for patients with significant leg length discrepancies, post-traumatic bone malunion/non-union, congenital bone conditions, or complex skeletal deformities.
Key clinical indicators include:
- Leg Length Discrepancy (LLD) greater than 2-3 cm causing pelvic tilt, spinal compensation, or limp.
- Congenital conditions like fibular hemimelia, Ollier's disease, or achondroplasia.
- Post-traumatic growth plate arrest or malunited bone fractures.
- Severe angular or rotational bone deformities (bowlegs, knock-knees, complex clubfoot).
- Stature enhancement in select, thoroughly evaluated candidates.
Types of Fixation Methods
- Internal Lengthening Nails (e.g., PRECICE / STRYDE Nail): Magnetically controlled motorized intramedullary nails placed inside the bone, eliminating external pins and wires.
- External Fixators (Ilizarov / Hexapod Circular Fixator): Ring fixators connected to bone via pins/wires; versatile for simultaneous lengthening and 3D deformity correction.
- LON (Lengthening Over Nail): Combines external fixators with an internal nail to reduce total duration of external fixator wear.
Benefits of Limb Lengthening & Deformity Correction
- Equalizes leg lengths, eliminating pelvic tilt, back pain, and functional gait limping.
- Corrects complex 3D bone deformities and joint alignments.
- Restores physiological biomechanics and prevents premature osteoarthritis.
- Internal motorized nails offer comfortable, discreet lengthening without external frames.
What to Expect Before Surgery?
- Comprehensive Radiographic Mapping: Full-length standing EOS X-rays and CT scanography to measure mechanical axes and precise millimeter discrepancies.
- Psychological & Physical Readiness: Evaluation of patient commitment, as daily distraction protocols and months of rehab require dedication.
- Pre-Op Physical Therapy: Muscle stretching (hamstrings, Achilles tendon) to prepare soft tissues for elongation.
Complete Procedure
- Administration of general or spinal anesthesia.
- Surgical osteotomy (precise bone cut) performed through a small incision.
- Insertion of the motorized internal lengthening nail OR application of the external circular ring fixator.
- Fixation securing with interlocking screws or tensioned wires.
- Verification of alignment under intraoperative X-ray fluoroscopy.
- Incision closure and sterile dressing of pin sites/wounds.
What to Expect During Surgery?
Surgery takes 2 to 4 hours depending on whether one or both bones (femur/tibia) are being treated and the choice of fixation.
Internal Motorized Nail vs External Ring Fixator
| Feature | Internal Motorized Nail (PRECICE) | External Fixator (Ilizarov / Frame) |
|---|---|---|
| Apparatus | Concealed entirely inside the bone. | External metal rings and pins outside skin. |
| Pin Site Infection | Zero risk of pin tract infections. | Requires daily pin site cleaning. |
| Comfort | High comfort; discreet under clothing. | Bulky; potential clothing interference. |
| Deformity Correction | Primarily straight lengthening. | Excellent for complex multi-axis deformities. |
Success Rate and Safety
When managed by experienced limb reconstruction specialists, success rates in achieving target bone length and union exceed 90-95%.
Limb Lengthening & Deformity Correction Cost Estimate
| Method / Technique | Single Limb / Unilateral (INR) | Both Limbs / Bilateral (INR) |
|---|---|---|
| External Fixator (Ilizarov / LRS) | ₹3,00,000 - ₹5,50,000 | ₹5,50,000 - ₹9,00,000 |
| Lengthening Over Nail (LON) | ₹4,50,000 - ₹7,50,000 | ₹8,00,000 - ₹13,00,000 |
| Motorized Internal Nail (PRECICE) | ₹8,00,000 - ₹14,00,000 | ₹15,00,000 - ₹28,00,000+ |
Disclaimer: Costs depend on the choice of internal magnetic nail vs external fixator, number of bones treated, and length of physical therapy.
Recovery Guide & Post-Operative Care
Phases of Recovery
- Distraction Phase (Lengthening): Starts 7 days post-op; bone is lengthened by ~1 mm per day (0.25 mm four times daily) using remote magnetic controller or frame adjustment until goal length is reached.
- Consolidation Phase (Bone Hardening): The newly formed soft bone gradually calcifies and solidifies; typically takes twice as long as the distraction phase.
- Full Weight-Bearing: Permitted once follow-up X-rays confirm 3 to 4 solid bone cortices.
Post-Op Precautions & Care
- Daily Physical Therapy: Intensive nerve and tendon stretching is mandatory to prevent muscle contractures during lengthening.
- Pin Site Hygiene: If using external fixators, daily cleaning of pin sites is necessary to prevent skin infections.
- Weight-Bearing Restrictions: Strictly follow doctor instructions regarding weight-bearing allowances based on nail/frame specifications.
Frequently Asked Questions
How much height or length can be safely added?⌄
Typically, 5 to 8 cm (2 to 3 inches) can be safely gained per bone segment (femur or tibia) in a single stage while protecting nerves and soft tissues.
Is limb lengthening painful?⌄
The gradual distraction rate (~1 mm per day) is generally well-tolerated. Pain relievers and muscle relaxants help manage temporary tightness during lengthening.
How long does the entire limb lengthening process take?⌄
For a 5 cm gain, lengthening takes about 50 days, followed by 3 to 5 months of consolidation before full unassisted weight-bearing.
What is an internal magnetic lengthening nail?⌄
An internal lengthening nail (like PRECICE) is placed inside the marrow cavity of the bone and activated using an external magnetic controller, avoiding external pins.
Can nerves and muscles stretch along with the bone?⌄
Yes, nerve and muscle tissues gradually adapt and lengthen under continuous controlled distraction, supported by targeted physical therapy.
